Intumescent Paint APP Ammonium Polyphosphate Flame Retardant Additives

  • Intumescent Paint APP Ammonium Polyphosphate Flame Retardant Additives
  • Intumescent Paint APP Ammonium Polyphosphate Flame Retardant Additives
  • Intumescent Paint APP Ammonium Polyphosphate Flame Retardant Additives
Place of Origin CHINA
Brand Name TFCARE
Certification SGS, REACH
Model Number TF-201
Minimum Order Quantity 1000KGS

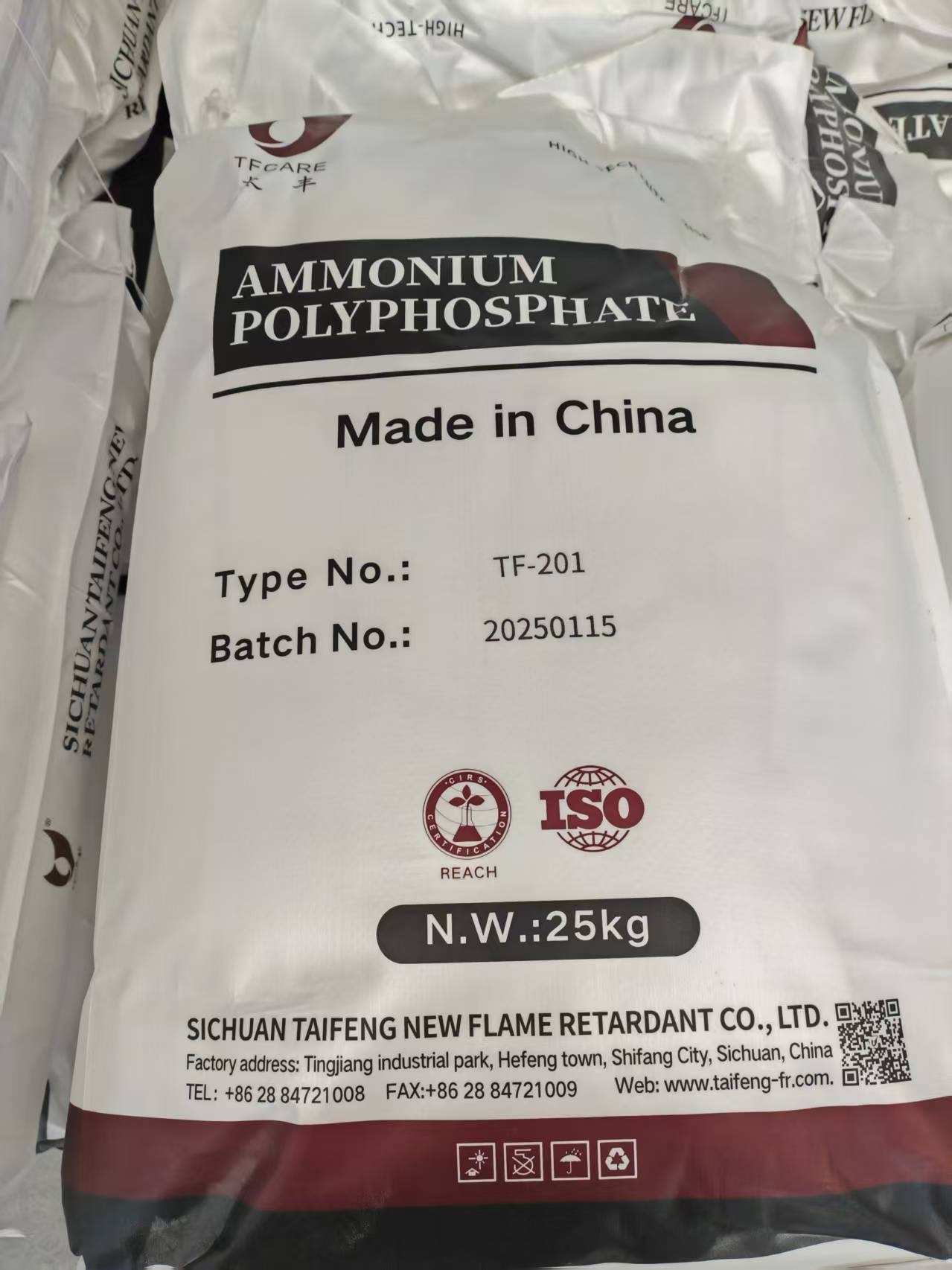

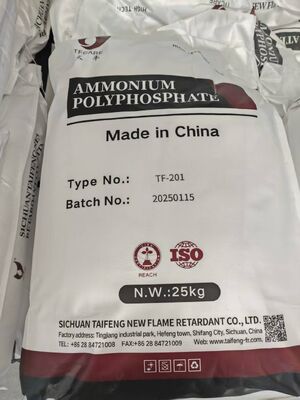

Packaging Details 25kg/bag or 1mt /bag , 20mt/fcl with pallets
Delivery Time 5-8days
Payment Terms T/T, L/C, D/P, Western Union
Supply Ability 500mt/ month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Appearance White Powder Addition Volume 20%-27%
Safety Non-dangerous Bulk Density 0.7g/cm3
Black Peak Class A Smoke Low And Nontoxic
Water Resistance Good Stability Good
Viscosity Low Shelf Life 2 Years
Products Ammonium Polyphosphate Flame Application Intumescent Paint, Rubber, PP, Expandable Fireproof Coating
Highlight

Intumescent Fireproof Coating Ammonium Polyphosphate

,

H12N3O4P Ammonium Polyphosphate

,

Water Resistance Ammonium Polyphosphate
Leave a Message
Product Description

Ammonium Polyphosphate Flame Retardant Additives For Intumescent Paint



Shifang Taifeng is a manufacture of Ammonium Polyphosphate(APP) with 21years experience. APP is a halogen-free flame retardant widely used for Intumescent Paint, rubber, PP, Expandable fireproof coating.



TF-201, it is equal to Clariant Exolit AP422 for intumescent coating. is used for intumescent fireproof coating. It is widely used for paint and fire coatings on wood and construction steel, and plywood, and wood plastic composites.





Specification :

Specification TF-201 TF-201S
Appearance White powder White powder
P content (w/w) ≥31% ≥30%
N content (w/w) ≥14% ≥14%
Degree of polymerization ≥1000 ≥1000
Moisture (w/w) ≤0.3% ≤0.5%
Solubility (25℃, g/100ml) ≤0.5 ≤0.7
PH value (10% aqueous suspension, at 25ºC) 5.5-7.5 5.5-7.5
Viscosity(10% aqueous suspension, at 25ºC) <10 <10
Particle size (µm) D50,14-18 D50,9-12
D100,<80 D100,<40
Whiteness ≥85 ≥85
Decomposition temperature T99%≥240℃ T99%≥240℃
T95%≥305℃ T95%≥305℃
Color stain A A
Conductivity(µs/cm) ≤2000 ≤2000
Acid value(mg KOH/g) ≤1.0 ≤1.0
Bulk density(g/cm3) 0.7-0.9 0.6-0.8



Synonyms: Ammonium polyphosphate;polyphosphoric acids ammonium salts;APP;ammonium polyphosphate flame retardant.

CAS: 68333-79-9

MF: H12N3O4P

MW: 149.086741

EINECS: 269-789-9



Description :

Ammonium polyphosphate (APP) is an organic salt of polyphosphoric acid and ammonia. As a chemical, it is non-toxic, environmentally friendly and halogen-free. It is most commonly used as a flame retardant, selection of the specific grade of ammonium polyphosphate can be determined by the solubility, Phosphorus content, chain length and polymerization degree. The chain length (n) of this polymeric compound can be linear or branched. Depending on the polymerization degree, there are two main families of ammonium polyphosphate: Crystal phase I APP (or APP I), and Crystal phase II APP (or APP II).



APP Phase II has an high polymerization degree, with n>1000, its structure is cross linked (branched), and it is an high-quality non-halogenated flame retardant. APP phase II, Ammonium polyphosphate, has an higher thermal stability (the decomposition starts at approximately 275°C) and lower water solubility than APP I.



Main Applications:
Solvent based and Water based intumescent coatings.
Flame retardant for polyurethanes.
Flame retardant for unsaturated polyesters.
Flame retardant for epoxies.
Flame retardant for acrylics.



How does flame retardant work?

Ammonium polyphosphate has a key useful property - flame retardant due to thermal expansion. Intumescent coatings will expand when exposed to high temperatures to against fire, and polyphosphate acid appears on the substrate (metal, wood). It is a product of dehydration and heating. If we are talking about a surface of organic matter, then a carbon film is formed. It does not allow fire to spread. It works like this - a large volume of non-combustible gases is generated, a thick foam appears, which acts as a layer of thermal insulation, and as a result, the material is protected from air and ceases to heat up.



When fire retardant paint burns, it emits some smoke. It contains very few toxic gases, so the coating is classified as non-hazardous. For paint, which includes such a flame retardant, the price is determined by its other components and the resulting properties. The material meets all the requirements of passive fire protection, which are presented to modern compositions.



Intumescent Paint APP Ammonium Polyphosphate Flame Retardant Additives 0



Intumescent Paint APP Ammonium Polyphosphate Flame Retardant Additives 1Intumescent Paint APP Ammonium Polyphosphate Flame Retardant Additives 2
