UL94 V0 halogen free Flame Retardant for PP With P-N Synergies

Place of Origin CHINA
Brand Name Taifeng
Certification ISO9001, REACH, SGS
Model Number TF-241
Minimum Order Quantity 25kg
Price Negotiable
Packaging Details 25kg/bag, 24mt/20'fcl without pallets, 20mt/20'fcl with pallets
Payment Terms T/T, L/C, D/P
Supply Ability 200 ton per month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
HS CODE 28353990 CAS NO 68333-79-9
Molecular Formula (NH4PO3)n Polymerization Degree N>1000
Application PP/HDPE/PE Halogen Free
Self Life 1 Year Flame Retardatn Mechanism Inhibit Chain Reaction
Color White Powder Storage In Dry And Cool Place
High Light

UL94 V0 PP Flame Retardant

,

UL94 V0 Flame Retardant

,

PP Flame Retardant UL94 V0

Leave a Message
Product Description

UL94 V0 PP Flame Retardant With P-N Synergies

Product description: TF-241 mainly contains P and N, is a kind of halogen free environmentally friendly flame retardant for polyolefin. It has been developed especially for various PP. Containing acid source, gas source and carbon source, TF-241 takes effect by char formation and intumescent mechanism.

Advantage: The flame retardant PP treated by TF-241 has better water resistance. It still has good flame retardant (UL94-V0) performance after boiling 72 hours in 70℃ water.
PP(3.0-3.2mm) with 22% TF-241 can pass the tests of UL94 V-0 and GWIT 750℃ / GWFI 960℃.
PP (1.5-1.6mm) with 30% addition volume of TF-241 can pass the tests of UL94 V-0.
UL94 V0 halogen free Flame Retardant for PP With P-N Synergies 0


Technical Data Sheet / Specification:

SpecificationTF-241

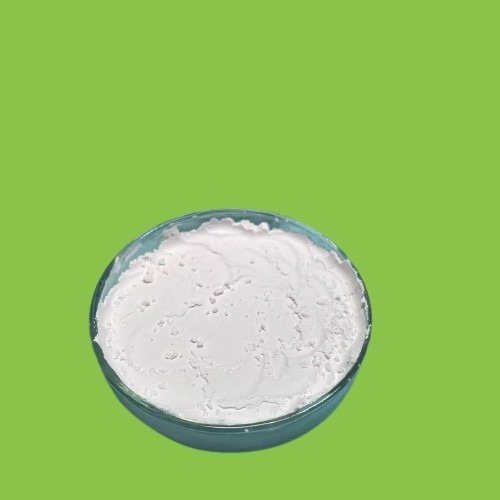

AppearanceWhite powder
P content (w/w)≥22%
N content (w/w)≥17.5%
Moisture (w/w)≤0.5%
PH value(10%aq,at 25℃)7.0-9.0
Viscosity(10%aq,at 25℃)<30mPa▪s
Decomposition Temperature≥270℃
Average particle size ( D50)14-20µm
Average particle size ( D100)<100µm
Solubility(10%aq,at 25℃)<0.70g/100ml

Characteristics :
1. White powder, good water resistance.2. Low density, low smoke generation.3. Halogen-free and none heavy metal ions.
Application:TF-241 is used in homopolymerization PP-H and copolymerization PP-B . It is widely used in
flame retardant polyolefin like steam air heater and household appliances.
Reference Formula for 3.2mm PP (UL94 V0):

MaterialFormula S1Formula S2
Homopolymerization PP (H110MA)77.3%
Copolymerization PP (EP300M) 77.3%
Lubricant(EBS)0.2%0.2%
Antioxidant (B215)0.3%0.3%
Anti-dripping (FA500H)0.2%0.2%
TF-24122%22%

Mechanical properties based on 30% addition volume of TF-241. With 30% TF-241 to reach UL94 V-0(1.5mm)

ItemFormula S1Formula S2
Vertical flammability rateV0(1.5mm)UL94 V-0(1.5mm)
Limit oxygen index (%)3028
Tensile strength (MPa)2823
Elongation at break (%)53102
Flammability rate after water-boiled (70℃,48h)V0(3.2mm)V0(3.2mm)
V0(1.5mm)V0(1.5mm)
Flexural modulus (MPa)23151981
Melt index (230℃,2.16KG)6.53.2

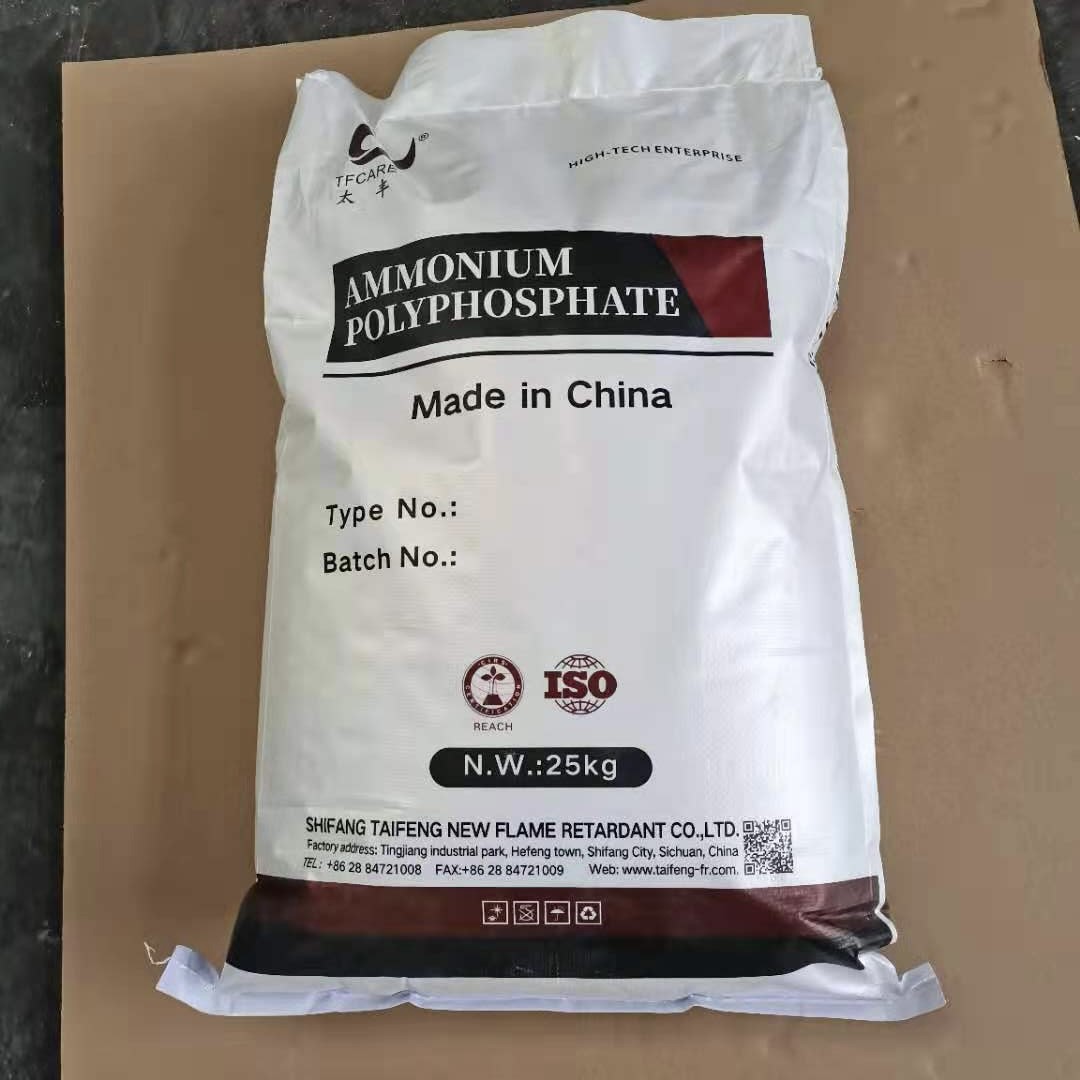

Packing : 25kg/bag, 24mt/20’fcl without pallets, 20mt/20’fcl with pallets. Other packing as request.
Storage: in dry and cool place, keeping out of moisture and sunshine, min. shelf life one year.
UL94 V0 halogen free Flame Retardant for PP With P-N Synergies 1



Benefits
  • Non-halogenated flame retardant based on ammonium polyphosphate, which develops its effectiveness through phosphorus/nitrogen synergism
  • Non-halogenated flame retardant with favorable environmental and health profile
  • When incorporated into thermoplastics, it exhibits high processing stability
  • Differs in its mode of action from chlorine- or bromine-containing flame retardants by achieving its effect through intumescence
  • May be used in polypropylene, PP-copolymers, and PP-blends
  • In compounding a reduced water uptake, less contamination of the water bath and less soapiness of the polymer strength is observed
  • Low smoke density and low smoke gas corrosivity
  • Excellent UV stability
  • Good recyclability

UL94 V0 halogen free Flame Retardant for PP With P-N Synergies 2



FAQ
Q1. What is your terms of payment?
A: T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages before you pay the balance.

Q2. How about your delivery time?
A: Generally, it will take 1 to 15 days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.

Q3. Can I have a sample order?
A. Yes, we can provide free sample for quality checking, but the courier charge should be paid by your side.

Q4. Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery.
